Solid Insulated Ac Metal Ring Switchgear

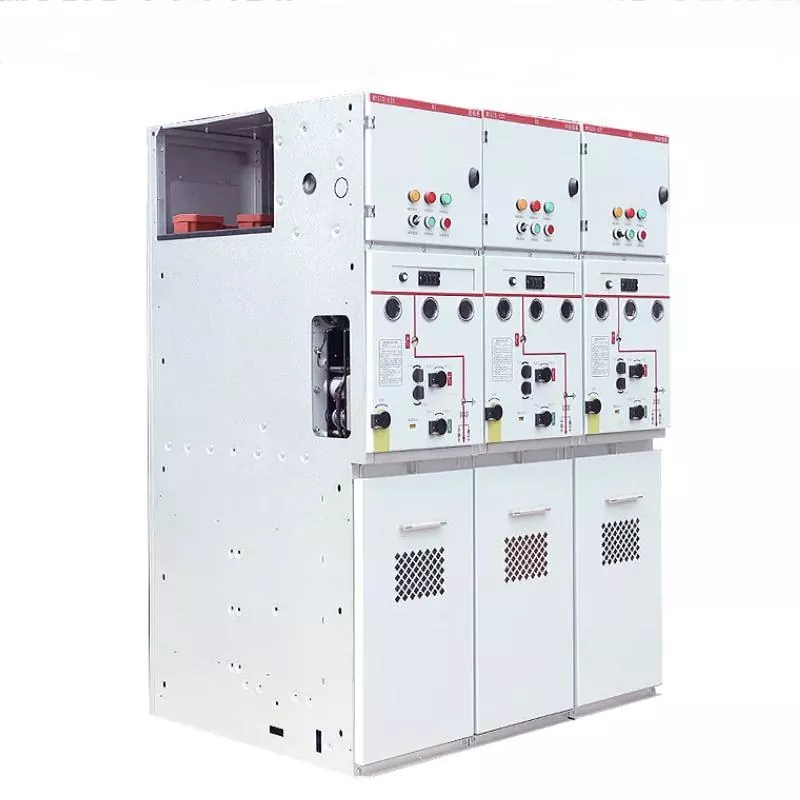

TOONICE 11KV Ring Main Unit, Solid Insulated Ac Metal Ring Switchgear is a fully insulated, fully sealed, maintenance-free solid insulated vacuum switchgear. All high-voltage live parts are cast and molded with epoxy resin materials with excellent insulation properties. The vacuum arc extinguishing chamber, main conductive circuit, insulating support, etc. are organically integrated into a whole. The functional units are connected through fully insulated solid bus bars. Therefore, the entire switchgear is not affected by the external environment, ensuring the reliability of equipment operation and the safety of operators.

The ring main unit has the characteristics of simple structure, flexible operation, reliable interlocking, and easy installation. It is suitable for 50Hz, 12kV power systems and is widely used in industrial and civil cable ring networks and distribution network terminal projects as the reception and distribution of electric energy. It is especially suitable for use in power distribution in urban residential areas, small substations, switching stations, cable branch boxes, box-type substations, industrial and mining enterprises, shopping malls, airports, subways, wind power generation, hospitals, stadiums, railways, tunnels and other places.

Since this product has the advantages of full insulation, full sealing, and full shielding, it is especially suitable for use in areas with harsh environments such as high altitude, high temperature, heat, severe cold, and severe pollution.

Feature And Application of the Solid Insulated Ac Metal Ring Switchgear

1. Compact Design: The solid insulation allows for a more compact and lightweight design compared to traditional air-insulated switchgear, making it ideal for space-constrained environments.

2. Enhanced Safety: Encapsulation of live parts within solid insulation materials reduces the risk of electric shocks and arc flash incidents, ensuring a higher level of safety for operators and maintenance personnel.

3. High Reliability: The solid insulation provides excellent protection against environmental factors such as moisture, dust, and pollution, leading to increased reliability and longevity of the switchgear.

4. Low Maintenance: The robust design of solid insulated switchgear minimizes maintenance requirements, reducing operational downtime and maintenance costs.

5. Extended Lifespan: With high resistance to environmental degradation, solid insulated switchgear offers a longer operational lifespan, often exceeding that of traditional air-insulated systems.

6. Environmentally Friendly: Solid insulated switchgear typically uses eco-friendly materials and avoids the use of SF6 gas, which has a high global warming potential, contributing to a greener and more sustainable solution.

7. High Performance: The switchgear is designed to handle high loads and provide reliable performance under various operating conditions, with excellent short-circuit withstand capability and fast interruption times.

8. Modular and Flexible: The modular design allows for easy customization and scalability, enabling the switchgear to be tailored to specific requirements and easily expanded as needed.

9. Low Noise Levels: Solid insulation helps to dampen operational noise, contributing to a quieter working environment.

10. Ease of Installation: The compact and lightweight design, combined with modularity, makes the installation process straightforward and less time-consuming.

Applications of Solid Insulated AC Metal Ring Switchgear

1. Urban Power Distribution: Ideal for densely populated urban areas where space is limited and high reliability is essential.

2. Industrial Facilities: Provides reliable power distribution and protection for sensitive equipment in various industrial settings, including manufacturing plants and processing facilities.

3. Renewable Energy Integration: Plays a crucial role in integrating renewable energy sources, such as wind and solar farms, into the power grid, ensuring efficient and reliable energy distribution.

4. Substations: Widely used in substations, especially those located in harsh or space-constrained environments, due to its compact design and high reliability.

5. Commercial Buildings: Suitable for large commercial complexes where space savings, safety, and reliability are paramount.

6. Utilities: Used by utility companies to ensure stable and reliable power supply to residential and commercial customers, enhancing the overall efficiency of the power distribution network.

7. Transport Infrastructure: Deployed in railway and metro systems for reliable power distribution and control, supporting the continuous operation of transportation networks.

8. Mining Operations: Provides reliable and rugged power distribution solutions in mining operations, where durability and dependability are crucial.

9. Oil and Gas Industry: Suitable for use in both offshore platforms and onshore facilities, where space constraints and safety are critical considerations.

10. Data Centers: Ensures continuous and reliable operation of data centers, protecting critical data infrastructure from power disturbances and ensuring optimal performance.

By leveraging the advanced features of solid insulated AC metal ring switchgear, industries can achieve higher safety, reliability, and efficiency in their electrical power distribution systems, making it a versatile and valuable solution for a wide range of applications.
